Elasticsearch-Snapshot

📄 Elasticsearch-Snapshot-Doc-Link

A snapshot is a backup of a running Elasticsearch cluster. You can use snapshots to:

Regularly back up a cluster with no downtime Recover data after deletion or a hardware failure Transfer data between clusters Reduce storage costs by using searchable snapshots in the cold and frozen data tiers

Self-managed repository types

If you manage your own Elasticsearch cluster, you can use the following built-in snapshot repository types:

Azure Google Cloud Storage AWS S3 Shared file system Read-only URL Source-only

Shared file system Snapshots

This guide explains how to configure an on-premises snapshot repository for Elasticsearch using an NFS shared directory. Follow each step carefully — every Elasticsearch node must be configured identically.

1. Configure Elasticsearch Snapshot Directory (path.repo)

First, we must define a directory where Elasticsearch is allowed to write snapshots. 🔹 IMPORTANT: Perform the following steps on every Elasticsearch node. Create the Snapshot Directory SSH into each Elasticsearch node and run:

sudo mkdir -p /mnt/es-snap
sudo chown -R elasticsearch:elasticsearch /mnt/es-snap
sudo chmod 770 /mnt/snap
Add the Directory to elasticsearch.yml /etc/elasticsearch/elasticsearch.yml Add this line:
path.repo: /mnt/es-snap

1. Configure Mount-Path on Elasticsaerch VM's

Install NFS Client Packages on Elasticsearch VM's Ubuntu:

sudo apt install nfs-common -y

RHEL / Rocky:

sudo yum install nfs-utils -y
Mount Path to the NFS Share
sudo mount -t nfs <NFS_IP>:/mnt/es-snap /mnt/es-snap
Example:
sudo mount -t nfs 10.0.10.5:/mnt/es-snap /mnt/es-snap

Add Mount Point to fstab

/etc/fstab

<NFS_IP>:/mnt/snap /mnt/snap nfs defaults 0 0 > /etc/fstab

Restart Elasticsearch

sudo systemctl restart elasticsearch

5. Register the Snapshot Repository in Elasticsearch

Once NFS is mounted on all nodes and the directory is configured as path.repo, register the repository: Go to Elasticsearch DevTool and run below command

PUT _snapshot/nfs_repo
{
  "type": "fs",
  "settings": {
    "location": "/mnt/es-snap",
    "compress": true
  }
}
Verify the Repository
POST _snapshot/nfs_repo/_verify

If everything is configured correctly, Elasticsearch will return a success message.

Create Snapshot Policy

Go to Elasticsearch DevTool and run below command

PUT _slm/policy/daily-snap
{
  "schedule": "0 30 1 * * ?",
  "name": "<daily-snap-{now/d}>",
  "repository": "nfs_repo",
  "config": {
    "indices": ["*"],   #edit indices depends on your index name
    "ignore_unavailable": true,
    "include_global_state": false
  },
  "retention": {
    "expire_after": "30d",
    "min_count": 5,
    "max_count": 50
  }
}

Test Snapshot

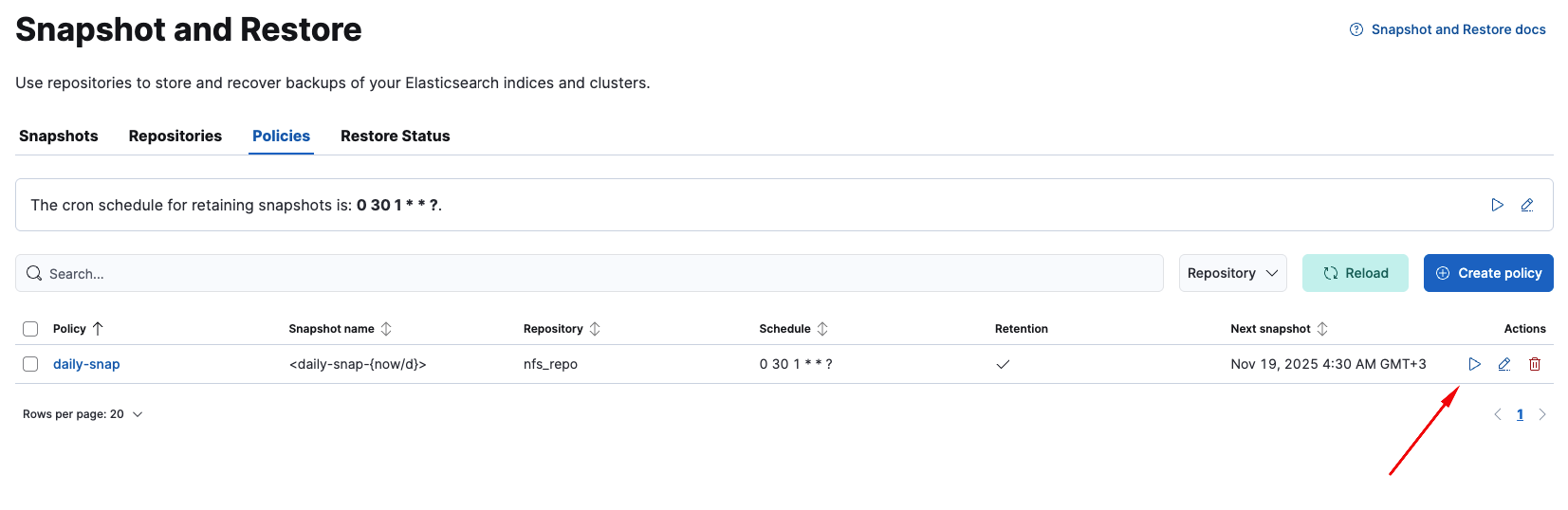

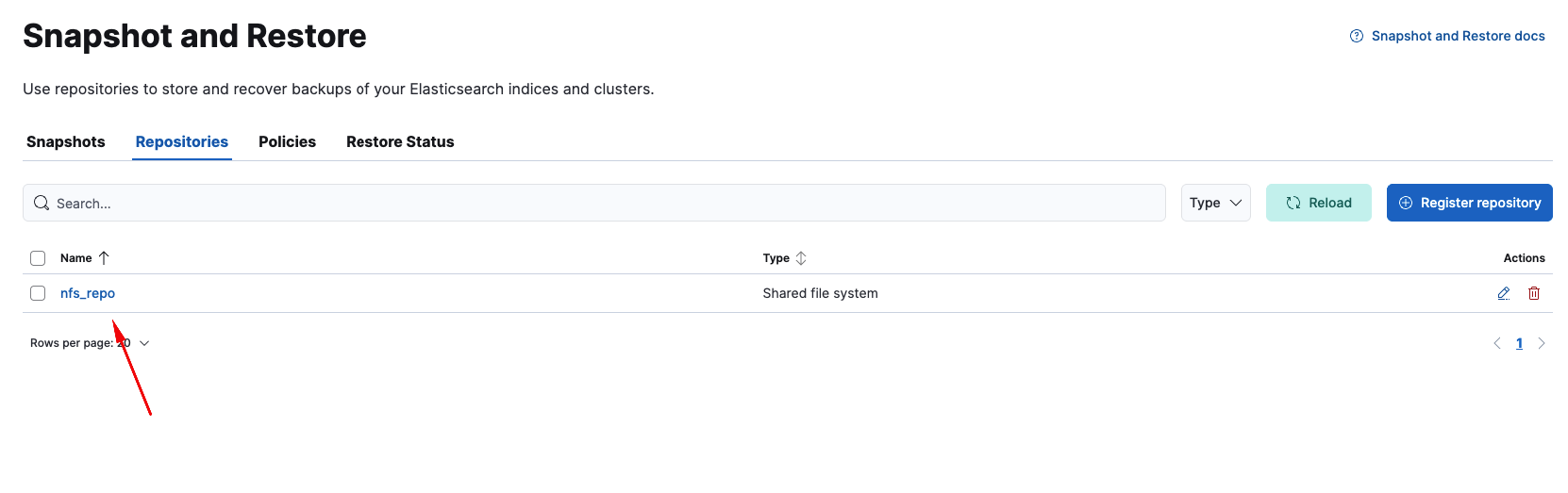

Go To Kibana UI Stack Manamement --> Snapshot and Restore Check your Repositories and Policies image Is everyting ok go to policies and click run now button

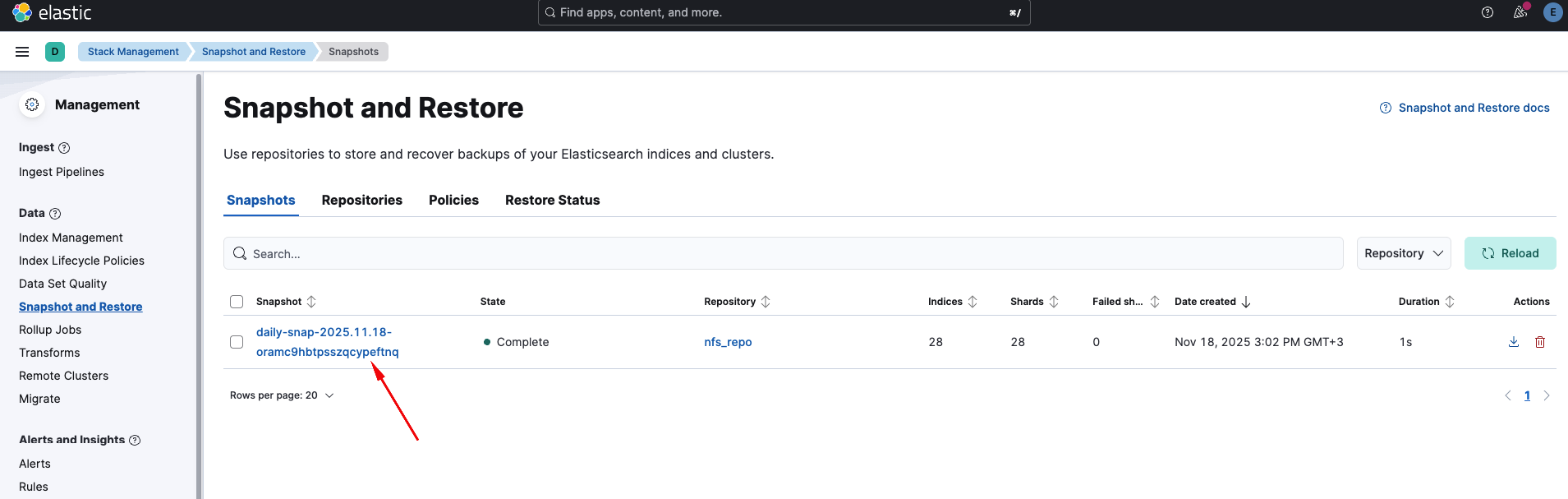

And Check your Snapshots


Azure Blob Storage Snapshots

Create Azure Storage Account

Log in to Azure Portal: https://portal.azure.com/ Go to Storage Accounts → Create Fill in the required fields: Subscription: Select your Azure subscription Resource Group: Choose existing or create a new one Storage Account Name: es-snapshots Location: Performance: Standard Replication: Locally-redundant storage (LRS) Click Review + Create, then Create.

Create Blob Container and SAS Token

Create Blob Container Navigate to: Storage Account → Containers → + Container Fill in: Container Name: es-backups Public Access Level: Private Click Create. Generate SAS Token Navigate to: Storage Account → Security + Networking → Shared Access Signature (SAS) Select: Allowed Services: Blob Allowed Resource Types: Container, Object Permissions: Read, Write, Delete, List Click: Generate SAS and Connection String Copy the SAS Token for later.

Configure Azure Credentials on Elasticsearch Nodes

You must run these commands on every Elasticsearch node. Add Storage Account Name to Elasticsearch Keystore

/usr/share/elasticsearch/bin/elasticsearch-keystore add azure.client.default.account
Enter your storage account name, e.g.:
es-snapshots

Add SAS Token to Elasticsearch Keystore

/usr/share/elasticsearch/bin/elasticsearch-keystore add azure.client.default.sas_token
Paste the SAS Token from Azure Portal.
Restart Elasticsearch
sudo /bin/systemctl daemon-reload
sudo systemctl restart elasticsearch.service

Register Azure Snapshot Repository in Elasticsearch

Use Kibana Dev Tools

PUT _snapshot/azure_repo
{
  "type": "azure",
  "settings": {
    "container": "es-backups",
    "client": "default",
    "base_path": "snapshots",
    "chunk_size": "64mb",
    "compress": true
  }
}

Verify Repository

PUT _snapshot/azure_repo/_verify

If successful, it returns node information.
