GitLab Runner Installation Guide

Hello everyone from Hepapi! Today, we will discuss how to install GitLab Runner on a self-hosted GitLab instance.

In modern DevOps workflows, GitLab Runner plays a critical role in executing CI/CD pipelines. Whether you need to run jobs on Kubernetes, Docker, or bare-metal environments, installing GitLab Runner correctly ensures that your builds, tests, and deployments are executed efficiently.

In this guide, we'll walk through the step-by-step installation process using Helm, making it easy to deploy, configure, and manage GitLab Runner in your Kubernetes cluster.

By the end of this tutorial, you'll have a fully functional GitLab Runner connected to your GitLab instance, ready to process CI/CD jobs seamlessly.

1. Add the GitLab Helm Repository

Before installing GitLab Runner, ensure that the official GitLab Helm repository is added and updated in your system:

helm repo add gitlab https://charts.gitlab.io
helm repo update

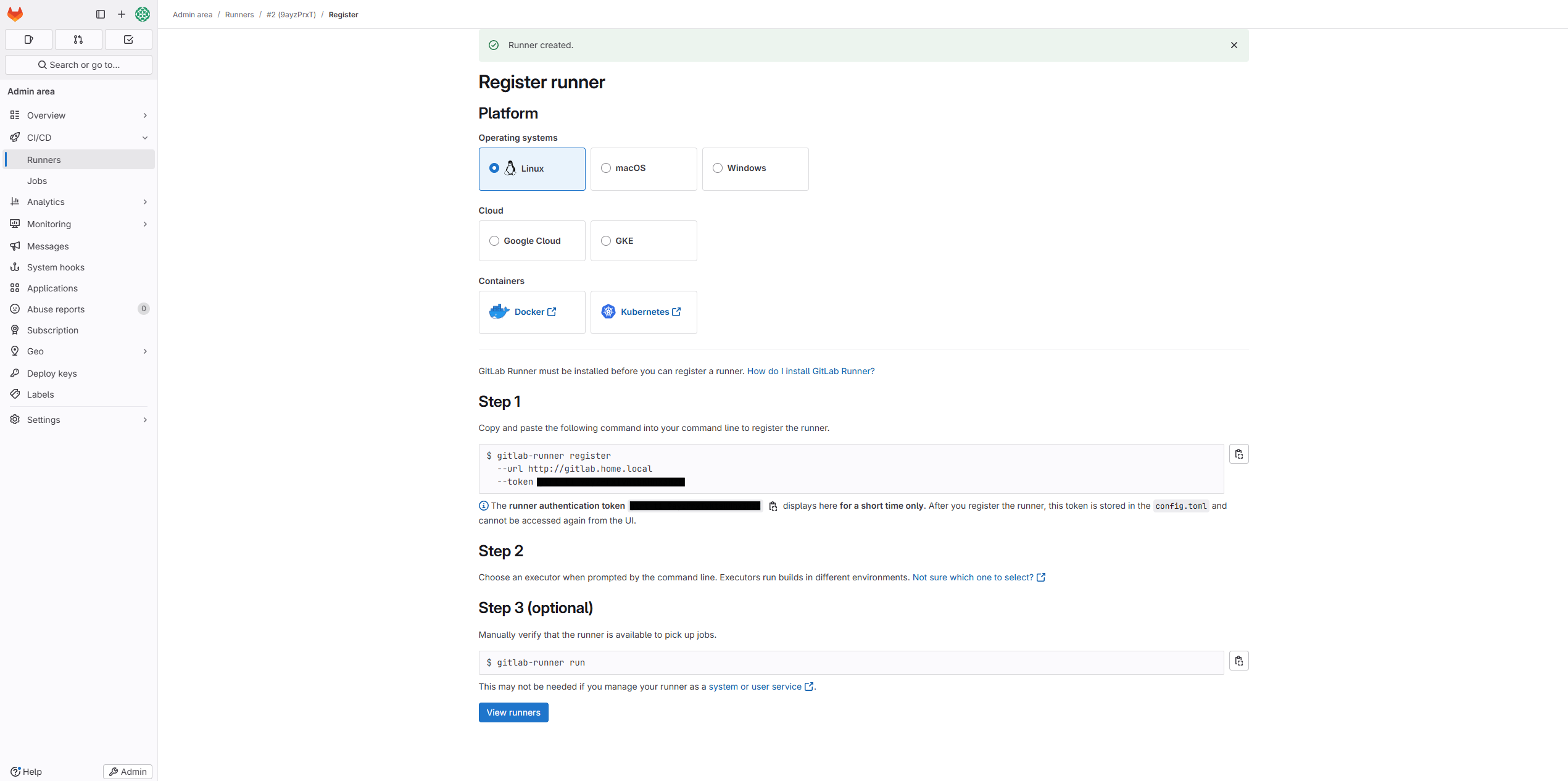

2. Get the GitLab Runner Token

To register a new GitLab Runner, follow these steps:

  1. Navigate to GitLab → Settings → CI/CD.
  2. Scroll down to the Runners section.
  3. Click on New instance runner.

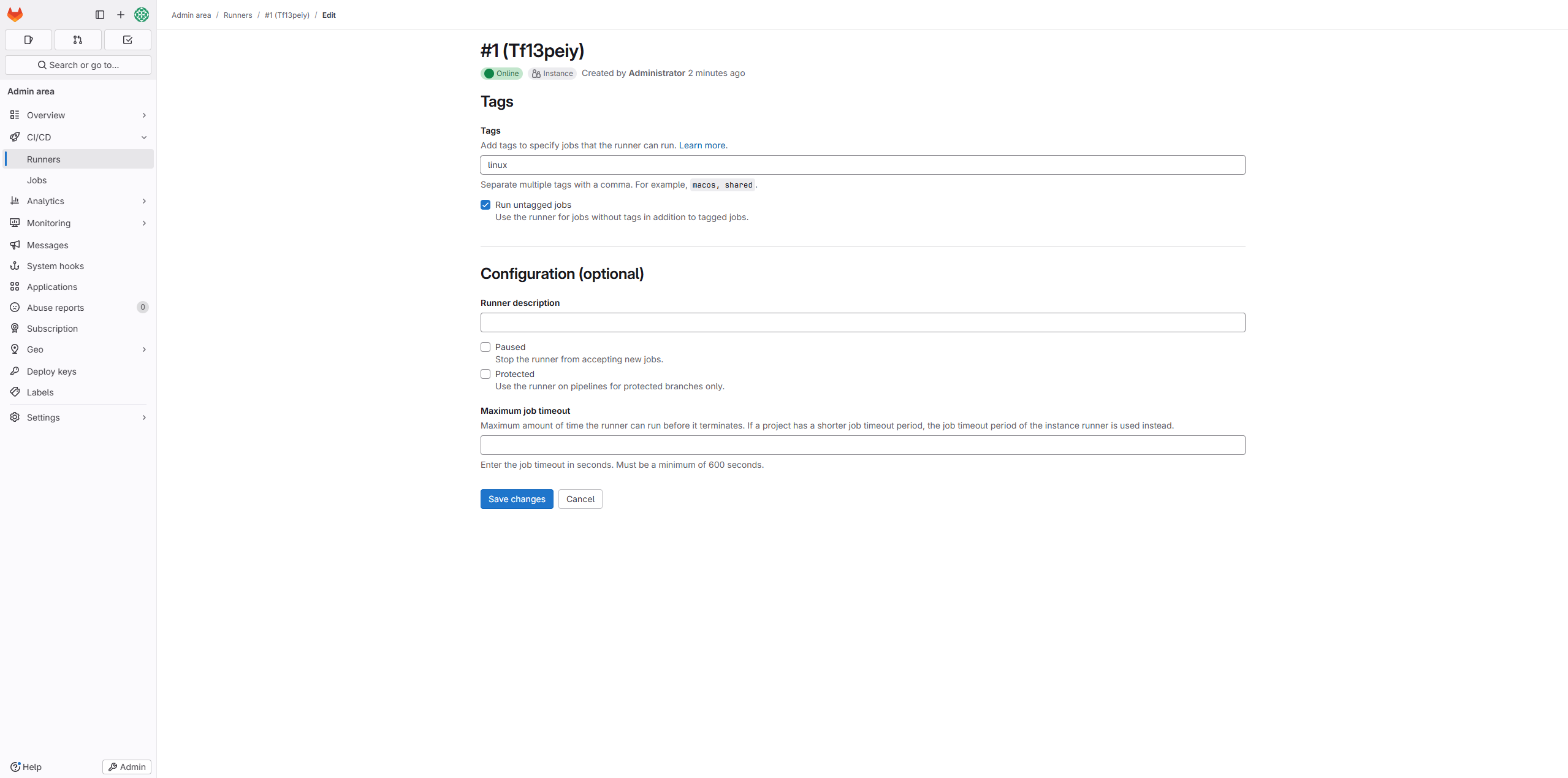

  4. Add a tag to the runner (e.g., kubernetes-runner).
  5. Click Create Runner and save the generated token.

You'll need this runner token in the next step to connect GitLab Runner to your instance.

GitLab Runner GitLab Runner

3. Install GitLab Runner with Helm

Now, install GitLab Runner on your Kubernetes cluster using Helm. Replace <your-gitlab-url> with your GitLab instance URL and <your-runner-token> with the token you saved in the previous step.

helm install --namespace gitlab gitlab-runner gitlab/gitlab-runner \
  --set gitlabUrl=<your-gitlab-url> \
  --set runnerToken=<your-runner-token>

Example:

helm install --namespace gitlab gitlab-runner gitlab/gitlab-runner \
  --set gitlabUrl=https://gitlab.example.com \
  --set runnerToken=your-unique-runner-token

4. Verify the GitLab Runner Deployment

Once the installation is complete, check if the GitLab Runner pods are running correctly:

kubectl get pods -n gitlab

You should see an output similar to this:

NAME                                    READY   STATUS    RESTARTS   AGE
gitlab-runner-56f7cbb6d8-tlqxm          1/1     Running   0          2m

If the runner is not running, check the logs for any issues:

kubectl logs -n gitlab -l app=gitlab-runner

5. Confirm Runner Registration in GitLab

Go to GitLab → Settings → CI/CD → Runners, and you should see your new runner online with the tag you assigned earlier.

This means your GitLab Runner is successfully installed and ready to execute CI/CD jobs! 🎉

6. Optional: Customize GitLab Runner Configuration

You can customize your GitLab Runner setup by modifying values in the Helm chart. For more details and how to enable docker in docker, refer to the GitLab Runner Helm Chart Configuration documentation.

Conclusion

By following this guide, you have successfully installed GitLab Runner in your Kubernetes cluster using Helm. This setup enables you to leverage scalable and automated CI/CD pipelines while keeping infrastructure maintenance minimal.

Feel free to explore additional configurations based on your requirements, such as autoscaling, custom runner tags, and integration with Kubernetes-native workloads.
